PUR 98 D
Island cooker hood with energy-efficient LED lighting and light-touch switches for easy use.
PUR 98 D
Island cooker hood with energy-efficient LED lighting and light-touch switches for easy use.
Feature Highlights
- Timeless design - 898 mmmm wide stainless steel cooker hood
- Powerful - 650 m3/hm3/h on the booster setting
- Efficient filtration- 10-ply stainless-steel grease filter
- Safe and easy to clean - Miele CleanCover
- Suitable for every home - for extraction or recirculation
Color
‐ Clean steel/Stainless steel
Purchase Support
Monday – Friday
9:00am – 5:00pm
Saturday
10:00am – 4:00pm
Your exclusive advantages

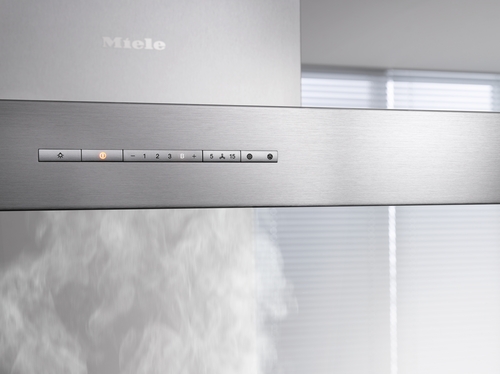

Booster setting switch-off
Programmable maximum power
Full power when required: The Booster setting is efficient at extracting strong cooking vapours and odours.
The Booster setting provides very high air flow and is only intended for brief operation, for example, when heavy smoke or strong odours develop when food is burned. The Booster setting can be programmed so that the fan automatically switches back to Setting 3 after 5 minutes. This avoids unnecessary energy consumption.
Handcrafted in Germany
Each Miele cooker hood is unique.
Know-how and craftsmanship: All our knowledge is poured into every cooker hood, from development to production.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.

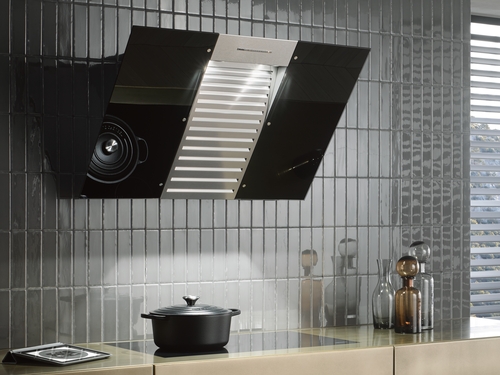

Design flexibility
Timeless purism
Clear design, intelligent technology: you can choose between many models and features.
Miele offers cooker hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele cooker hoods have characteristic accents without being intrusive. Clean lines, well thought-out functions and timeless design.
Active AirClean filter
A completely odour-free kitchen
Efficient odour absorption: the disposable filter with active charcoal must be replaced regularly.
To remove odours with a Miele recirculation cooker hood, you can use an active charcoal filter. This disposable filter has to be replaced on a regular basis.

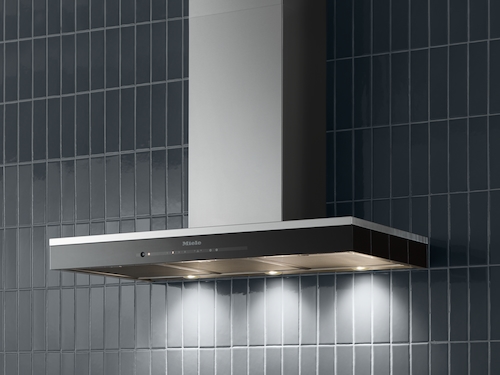

High-quality and powerful motors
Particularly powerful
Powerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels.
Miele cooker hoods are equipped with high-quality radial fans that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimised extraction. Despite their high performance, the fans operate at a comfortably low noise level.

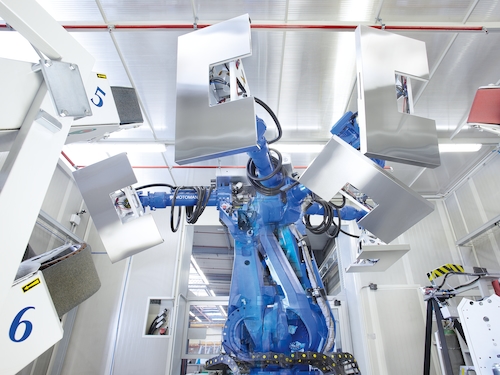

Perfect processing
Visible quality
Unique characteristics of Miele hoods: precise contours and precision joints.
Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
_12.png)
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
What's Included
Product data sheet
Air throughput with max. duct diameter in vented mode (not for external version)
| Air throughput in setting 1 (cfm) | 280 |
| Air throughput in setting 2 (cfm) | 330 |
| Air throughput in setting 3 (cfm) | 400 |
| Air throughput in Intensive setting (cfm) | 650 |
| Sound power in setting 1 (dB(A) re 1 pW) | 48.00 |
| Sound power in setting 2 (dB(A) re 1 pW) | 53.00 |
| Sound power in setting 3 (dB(A) re 1 pW) | 57.00 |
| Sound power in Intensive setting (dB(A) re 1 pW) | 69.00 |
| Sound pressure in setting 1 (dB(A) re 20 µPa) | 31.00 |
| Sound pressure in setting 2 (dB(A) re 20 µPa) | 35.00 |
| Sound pressure in setting 3 (dB(A) re 20 µPa) | 39.00 |
| Sound pressure in Intensive setting (dB(A) re 20 µPa) | 51.00 |
Blower
| Dual-action blower | • |
| AC motor | • |
Air throughput in recirculation mode
| Air throughput in setting 1 (cfm) | 190 |
| Air throughput in setting 2 (cfm) | 270 |
| Air throughput in setting 3 (cfm) | 330 |
| Air throughput in Intensive setting (cfm) | 460 |
| Sound power in setting 1 (dB(A) re 1 pW) | 57.00 |
| Sound power in setting 2 (dB(A) re 1 pW) | 62.00 |
| Sound power in setting 3 (dB(A) re 1 pW) | 66.00 |
| Sound power in Intensive setting (dB(A) re 1 pW) | 73.00 |
| Sound pressure in setting 1 (dB(A) re 20 µPa) | 40.00 |
| Sound pressure in setting 2 (dB(A) re 20 µPa) | 45.00 |
| Sound pressure in setting 3 (dB(A) re 20 µPa) | 49.00 |
| Sound pressure in Intensive setting (dB(A) re 20 µPa) | 56.00 |
Installation notes
| Extraction ducting connection at top | • |
| Diameter of extraction ducting connection in mm | 150 |
| Telescopic chimney | • |
Safety
| Safety shut-off | • |
Technical data
| Overall height for vented and external in in. (mm) | 990 |
| Overall height for recirculation in in. (mm) | 1060 |
| Canopy width in in. (mm) | 898 |
| Height of hood canopy in in. (mm) | 70 |
| Depth of hood canopy in in. (mm) | 598 |
| Minimum height above electric hobs in mm | 450 |
| Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 650 |
| Net weight in kg | 34.00 |
| Length of supply lead in m | 0.00 |
| Hard-wired connection | • |
| Total rated load in kW | 0.23 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
Lighting
| LED | • |
| Number x W | 4 x 3 W |
| Colour temperature in K | 3000 K |
Filter system
| Number of dishwasher safe stainless-steel grease filters (10-ply) | 3 |
Cleaning convenience
| Easy-to-clean canopy interior – CleanCover | • |
User convenience
| Electronic controls | • |
| Light-touch switches with LED | • |
| Power levels (number without Booster level) | 3 |
| Booster level | • |
| Programmable Booster level switch-off | • |
Design
| Colour | Stainless steel |
| Customisation possible on request | • |
| Variable height available as customisation on request | • |
| Variable width available as customisation on request | • |
Operating modes
| Type of air guide | Convertible |
| Recirculation conversion kit (order separately) | DUI 32 |
| Active charcoal filter (order separately) | DKF12-1 |
Construction type
| Island cooker hood | • |
