DA 6698 W Puristic Edition6000
Wall mounted cooker hood with energy-efficient LED lighting and touch controls for simple operation.
DA 6698 W Puristic Edition6000
Wall mounted cooker hood with energy-efficient LED lighting and touch controls for simple operation.
Feature Highlights
Color
‐ Obisidian Black
Purchase Support
Monday – Friday
9:00am – 5:00pm
Saturday
10:00am – 4:00pm
Your exclusive advantages
Run-on function
Automatic fan run-on
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
The automatic fan run-on ensures the full extraction of steam and odours still in the air after cooking. The cooker hood can be set to switch off automatically after 5 or 15 minutes.
Booster setting switch-off
Programmable maximum power
Full power when required: The Booster setting is efficient at extracting strong cooking vapours and odours.
The Booster setting provides very high air flow and is only intended for brief operation, for example, when heavy smoke or strong odours develop when food is burned. The Booster setting can be programmed so that the fan automatically switches back to Setting 3 after 5 minutes. This avoids unnecessary energy consumption.
Handcrafted in Germany
Each Miele cooker hood is unique.
Know-how and craftsmanship: All our knowledge is poured into every cooker hood, from development to production.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.
Silence
Performance and convenience as standard
Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing.
Efficient and very quiet. The motor, chimney and cooker hood canopy are equipped with special insulation for effective sound-proofing. You can have a normal conversation even with high air throughput.

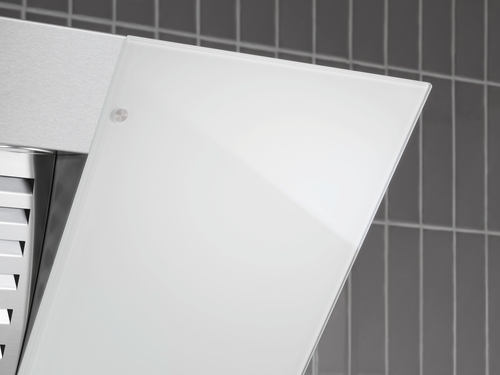

Single pane safety glass
Special safety for hoods with a glass canopy
To be on the safe side: this glass, should it break, shatters into many small, blunt pieces.
Miele cooker hoods with a material combination of glass and stainless steel feature single-pane safety glass. If broken, this special glass crumbles into lots of small pieces without sharp edges. As you would expect: Miele ensures maximum safety should the unexpected happen.
Design flexibility
Timeless purism
Clear design, intelligent technology: you can choose between many models and features.
Miele offers cooker hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele cooker hoods have characteristic accents without being intrusive. Clean lines, well thought-out functions and timeless design.
Con@ctivity
Automatic operation for intelligent fan control
Optimum room climate: The required fan output is automatically controlled by the hob settings.
Thanks to the Con@ctivity automatic function, the cooker hood can communicate with the hob below: the settings selected on the hob are transmitted to the controls on the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication between the hob and hood is established either via ZigBee (Con@ctivity 2.0) or WiFi (Con@ctivity 3.0).
Filter indicator
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
If the grease or active charcoal filter of your Miele cooker hood is saturated, it is indicated by a lit-up red LED. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Active AirClean filter
A completely odour-free kitchen
Efficient odour absorption: the disposable filter with active charcoal must be replaced regularly.
To remove odours with a Miele recirculation cooker hood, you can use an active charcoal filter. This disposable filter has to be replaced on a regular basis.
High-quality and powerful motors
Particularly powerful
Powerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels.
Miele cooker hoods are equipped with high-quality radial fans that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimised extraction. Despite their high performance, the fans operate at a comfortably low noise level.
Perfect processing
Visible quality
Unique characteristics of Miele hoods: precise contours and precision joints.
Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
_12.png)
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
ECO motor
The heart of every cooker hood
Powerful and economical: the DC motor saves up to 70 % electricity compared with conventional motors.
The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 70 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.
What's Included
Product data sheet
Construction type
| Wall mounted cooker hood | • |
Design
| Colour | Obsidian black |
| RAL colours available as customisation on request | • |
| Customisation possible on request | • |
| Variable height available as customisation on request | • |
| Variable width available as customisation on request | • |
Operating modes
| Type of air guide | Convertible |
| Recirculation conversion kit (order separately) | DUW 20 |
| Active charcoal filter (order separately) | DKF12-1 |
User convenience
| Electronic controls | • |
| Touch-on-glass controls | • |
| Power levels (number without Booster level) | 3 |
| Booster level | • |
| Programmable Booster level switch-off | • |
| Grease filter saturation indicator | • |
| Grease filter saturation indicator programmable | • |
| Active charcoal filter saturation indicator programmable | • |
| Silence package | • |
Cleaning convenience
| Easy-to-clean canopy interior – CleanCover | • |
Efficiency and sustainability
| PowerManagement system | • |
| ECO package | • |
Networking of domestic appliances
| Miele@home | • |
| • | |
| MobileControl | • |
| • | |
| Automatic function Con@ctivity 3.0 | • |
Filter system
| Number of dishwasher safe stainless-steel grease filters (10-ply) | 3 |
Lighting
| LED | • |
| Number x W | 3 x 3 W |
| Light intensity in Lx | 670 Lux |
| Colour temperature in K | 3500 K |
| Dimmer function | • |
Blower
| Dual-action blower | • |
| DC motor | • |
Air throughput with max. duct diameter in vented mode (not for external version)
| Air throughput in setting 1 (cfm) | 200 |
| Air throughput in setting 2 (cfm) | 300 |
| Air throughput in setting 3 (cfm) | 400 |
| Air throughput in Intensive setting (cfm) | 640 |
| Sound power in setting 1 (dB(A) re 1 pW) | 36.00 |
| Sound power in setting 2 (dB(A) re 1 pW) | 44.00 |
| Sound power in setting 3 (dB(A) re 1 pW) | 52.00 |
| Sound power in Intensive setting (dB(A) re 1 pW) | 63.00 |
| Sound pressure in setting 1 (dB(A) re 20 µPa) | 21.00 |
| Sound pressure in setting 2 (dB(A) re 20 µPa) | 29.00 |
| Sound pressure in setting 3 (dB(A) re 20 µPa) | 37.00 |
| Sound pressure in Intensive setting (dB(A) re 20 µPa) | 48.00 |
Air throughput in recirculation mode
| Air throughput in setting 1 (cfm) | 110 |
| Air throughput in setting 2 (cfm) | 185 |
| Air throughput in setting 3 (cfm) | 315 |
| Air throughput in Intensive setting (cfm) | 460 |
| Sound power in setting 1 (dB(A) re 1 pW) | 45.00 |
| Sound power in setting 2 (dB(A) re 1 pW) | 53.00 |
| Sound power in setting 3 (dB(A) re 1 pW) | 63.00 |
| Sound power in Intensive setting (dB(A) re 1 pW) | 72.00 |
| Sound pressure in setting 1 (dB(A) re 20 µPa) | 30.00 |
| Sound pressure in setting 2 (dB(A) re 20 µPa) | 38.00 |
| Sound pressure in setting 3 (dB(A) re 20 µPa) | 48.00 |
| Sound pressure in Intensive setting (dB(A) re 20 µPa) | 57.00 |
Safety
| Safety shut-off | • |
| Single-ply safety glass (ESG) | • |
Technical data
| Overall height for vented and external in in. (mm) | 710 |
| 1030 | |
| Overall height for recirculation in in. (mm) | 840 |
| 1160 | |
| Canopy width in in. (mm) | 898 |
| Height of hood canopy in in. (mm) | 85 |
| Depth of hood canopy in in. (mm) | 500 |
| Minimum height above electric hobs in mm | 450 |
| Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm | 650 |
| Net weight in kg | 26.00 |
| Length of supply lead in m | 1.50 |
| Standard plug fitted | • |
| Total rated load in kW | 0.09 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
Installation notes
| Extraction ducting connection at top | • |
| Extraction ducting connection at rear | • |
| Extraction connection at top and rear | • |
| Diameter of extraction ducting connection in mm | 150 |
| Telescopic chimney | • |
| Telescopic wall bracket | • |
| Combination with WiFi-enabled Miele hob | recommended |
