DA 4228 W Puristic Plus
Wall mounted cooker hood with energy-efficient LED lighting and light-touch switches for easy use.
DA 4228 W Puristic Plus
Wall mounted cooker hood with energy-efficient LED lighting and light-touch switches for easy use.
Feature Highlights
- Timeless design - 1,198mm wide stainless steel cooker hood
- Unique user convenience – Con@ctivity
- Powerful - 870m3/h on the booster setting
- Pleasantly quiet – Miele Silence package
- Safe and easy to clean - Miele CleanCover
Color
‐ Clean steel/Stainless steel
Purchase Support
Monday – Friday
9:00am – 5:00pm
Saturday
10:00am – 4:00pm
Your exclusive advantages

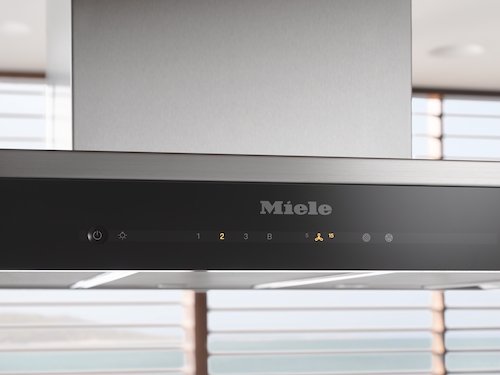

Run-on function
Automatic fan run-on
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
The automatic fan run-on ensures the full extraction of steam and odours still in the air after cooking. The cooker hood can be set to switch off automatically after 5 or 15 minutes.
Handcrafted in Germany
Each Miele cooker hood is unique.
Know-how and craftsmanship: All our knowledge is poured into every cooker hood, from development to production.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.
Silence
Performance and convenience as standard
Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing.
Efficient and very quiet. The motor, chimney and cooker hood canopy are equipped with special insulation for effective sound-proofing. You can have a normal conversation even with high air throughput.
Con@ctivity
Automatic operation for intelligent fan control
Optimum room climate: The required fan output is automatically controlled by the hob settings.
Thanks to the Con@ctivity automatic function, the cooker hood can communicate with the hob below: the settings selected on the hob are transmitted to the controls on the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting, ensuring the optimum room climate at all times. Communication between the hob and hood is established either via ZigBee (Con@ctivity 2.0) or WiFi (Con@ctivity 3.0).

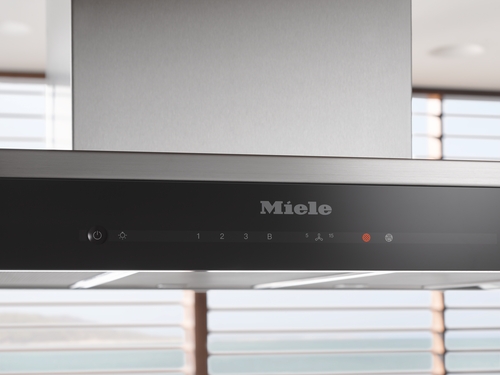

Filter indicator
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
If the grease or active charcoal filter of your Miele cooker hood is saturated, it is indicated by a lit-up red LED. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
_12.png)
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
ECO motor
The heart of every cooker hood
Powerful and economical: the DC motor saves up to 70 % electricity compared with conventional motors.
The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 70 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.
Product data sheet
| Construction type | |
|---|---|
| Wall mounted cooker hood |
•
|
| Design | |
| Colour |
Stainless steel
|
| Customisation possible on request |
•
|
| Operating modes | |
| Type of air guide |
air extraction
|
| User convenience | |
| Electronic controls |
•
|
| Light-touch controls |
•
|
| Miele@mobile app |
•
|
| Power levels (number without Booster level) |
3
|
| Booster level |
•
|
| Programmable Booster level switch-off |
•
|
| Run-on time 5 / 15 min. |
•
 Run-on functionOdour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period. |
| Grease filter saturation indicator programmable |
•
 Filter indicatorEasy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated. |
| Silence package |
•
 SilenceEfficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing. |
| Cleaning convenience | |
| Easy-to-clean canopy interior – CleanCover |
•
 Miele CleanCoverProtection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor. |
| Efficiency and sustainability | |
| ECO package |
•
|
| Appliance networking | |
| Miele@home |
•
 Miele@homeMiele@home allows you to network Miele household appliances. It provides you with a convenient way of controlling and monitoring each of your appliances specifically via a mobile device and the Miele@mobile app. |
| WiFiConn@ct |
•
 WiFiConn@ctWiFiConn@ct provides the technological basis for Miele@home. Your Miele household appliances are networked via your home WiFi router and the Miele cloud. |
| MobileControl |
•
 MobileControlMobileControl allows the cooker hood to be controlled remotely using a smartphone or tablet. To do this, the Miele@mobile app is used in combination with WiFi technology. This enables the lighting, fan power settings, and a run-on time to be set. The saturation level of the filters can also be read. |
| Automatic function Con@ctivity 2.0 (Zigbee) |
•
 Con@ctivity 2.0:With Con@ctivity 2.0, communication is established between the hood and hob based on RF technology (ZigBee). For Con@ctivity 2.0, an RF stick is required for the hob; this is supplied with the cooker hood. |
| Automatic function Con@ctivity 3.0 (WiFi) |
•
 Con@ctivity 3.0With Con@ctivity 3.0, communication is established between the hood and hob based on WiFi. When using Con@ctivity 3.0, MobileControl enables the cooker hood to also be controlled via the Miele@mobile app. |
| Filter system | |
Number of dishwasher safe stainless steel grease filters
 Stainless steel grease filters (10-layer)Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher. |
4
|
| Lighting | |
| LED |
•
|
| Light intensity in Lx |
440
|
| Colour temperature in K |
3,500
|
| Dimmer function |
•
|
| Fan | |
| Dual-action fan |
•
 High-quality and powerful motorsPowerful and quiet: Radial fans on both sides ensure high air throughput and extraction with low noise levels. |
| ECO motor (DC motor) |
•
 ECO motorPowerful and economical: the DC motor saves up to 70 % electricity compared with conventional motors. |
| Air throughput with max. duct diameter in extraction mode (not for external version) | |
| Air throughput in Level 1 (m³/h) |
310
|
| Air throughput in Level 2 (m³/h) |
460
|
| Air throughput in Level 3 (m³/h) |
630
|
| Air throughput in Booster level (m³/h) |
870
|
| Sound power in Level 1 (dB(A) re 1 pW) |
47
|
| Sound power in Level 2 (dB(A) re 1 pW) |
56
|
| Sound power in Level 3 (dB(A) re 1 pW) |
64
|
| Sound power in Booster level (dB(A) re 1 pW) |
72
|
| Sound pressure in Level 1 (dB(A) re 20 µPa) |
32
|
| Sound pressure in Level 2 (dB(A) re 20 µPa) |
41
|
| Sound pressure in Level 3 (dB(A) re 20 µPa) |
49
|
| Sound pressure in Booster level (dB(A) re 20 µPa) |
57
|
| Safety | |
| Safety switch-off |
•
 Safety switch-offSensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours. |
| Technical data | |
| Overall height for extraction mode and external mode cooker hoods in mm |
685
-
1,005
|
| Canopy width in mm |
1,198
|
| Canopy height in mm |
62
|
| Canopy depth in mm |
500
|
| Net weight in kg |
27.0
|
| Length of supply lead in m |
1.5
|
| Standard plug fitted |
•
|
| Total rated load in kW |
0.24
|
| Voltage in V |
230
|
| Fuse rating in A |
10
|
| Number of phases |
1
|
| Installation notes | |
| Extraction ducting connection at top |
•
|
| Extraction connection at top and rear |
•
|
| Diameter of extraction ducting connection in mm |
150
|
| Telescopic chimney |
•
 Telescopic chimneyWith the telescopic chimney, Miele wall- mounted and island cooker hoods can be adjusted to the proper height over the hob during installation. |
| Telescopic wall bracket |
•
 Telescopic wall bracketWith the telescopic wall bracket the Miele wall mounted cooker hoods can be adjusted to the proper height over the hob with only one single component. In addition, unevenness in the wall can be compensated for by a three-way adjustment feature. |
| Combination with WiFi-enabled Miele hob |
recommended
|
| Standard accessories | |
| Non-return flap |
•
 Non-return flapThe non-return flap is supplied with the appliance and ensures that no hot or cold outside air can enter your kitchen via the cooker hood. The component is installed directly on the vent connection above the fan for the cooker hood and closes the opening between the kitchen and the ducting system leading outside. |
| Adapter to reduce ducting diameter from 150 mm to 125 mm Ø |
•
|
| RF Con@ctivity 2.0 communication stick for KM |
XKS 3000 Z
|
