CSDA 1010

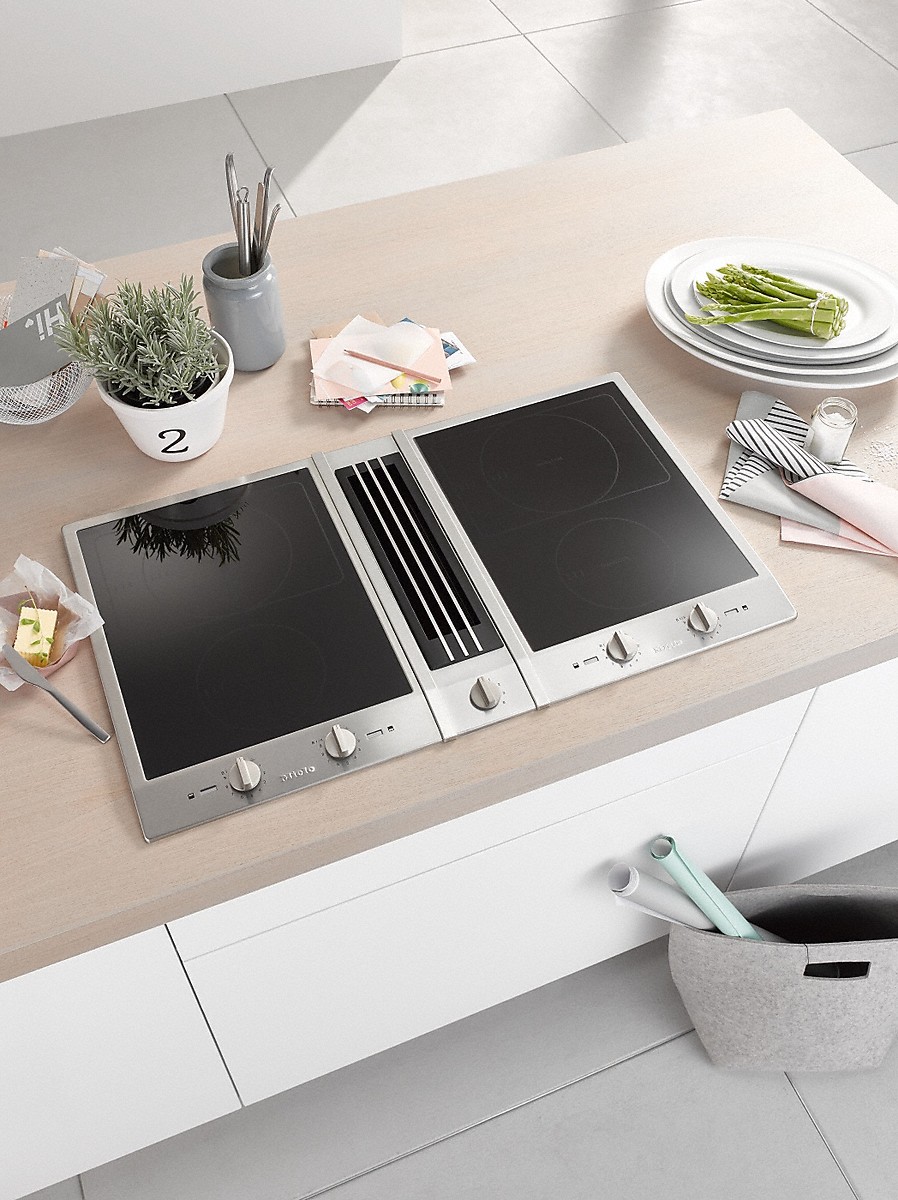

ProLine with downdraft extractor consists of two induction hobs with an extraction fan at the centre.
CSDA 1010
ProLine with downdraft extractor consists of two induction hobs with an extraction fan at the centre.
Feature Highlights
- Professional frame design - inclined control panel w. metal knobs
- Versatile induction - four cooking zones incl. two extended zones
- Large performance spectrum-keeping warm function&TwinBooster
- Safe and easy to clean - Miele CleanCover
- Energy-efficient and quiet - powerful ECO motor
Color
‐ Clean steel/Stainless steel
Purchase Support
Monday – Friday
9:00am – 5:00pm
Saturday
10:00am – 4:00pm
Your exclusive advantages

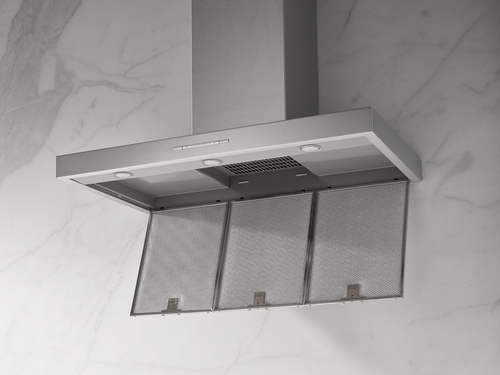

Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
_12.png)

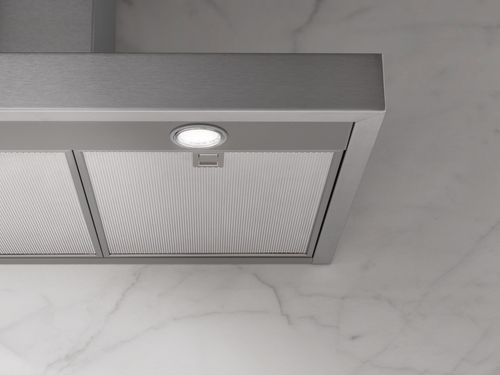

Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Miele cooker hoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
ECO motor
The heart of every cooker hood
Powerful and economical: the DC motor saves up to 70 % electricity compared with conventional motors.
The heart and soul of every cooker hood is the motor. Some Miele cooker hoods feature ECO motors which work up to 70 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele cooker hoods.
Product data sheet
| Construction type | |
|---|---|
| CombiSets with countertop extractor |
•
|
| Heating type | |
| Heating type on the left |
Electric with induction
|
| Heating type on the right |
Electric with induction
|
| Operating modes | |
| Type of air guide |
Convertible
|
| Design | |
| Colour of downdraft extractor |
Stainless steel
|
| Ceramic surface colour |
Black
|
| Miele logo embossed in stainless steel |
•
|
| Cooking zone details | |
| Number of cooking zones |
4
|
| Cooking zone | |
| Position |
front left
|
| Type |
Dual-circuit ring
|
| Diameter in mm |
Ø 100-160
|
| Rating in W |
1400
|
| Booster in W |
2200
|
| Cooking zone | |
| Position |
rear left
|
| Type |
Casserole area
|
| Diameter in mm |
Ø 200 / 200x300
|
| Rating in W |
2300
|
| Booster in W |
3000
|
| TwinBooster in W |
3700
|
| Cooking zone | |
| Position |
rear right
|
| Type |
Casserole area
|
| Diameter in mm |
200 Ø/ 300
|
| Rating in W |
2300
|
| Booster in W |
3000
|
| TwinBooster in W |
3700
|
| Cooking zone | |
| Position |
front right
|
| Type |
Dual-circuit ring
|
| Diameter in mm |
Ø 100-160
|
| Rating in W |
1400
|
| Booster in W |
2200
|
| User convenience | |
| Operation via knobs |
•
|
| Pan and pan size recognition |
•
|
| Auto heat-up |
•
|
| Residual heat utilisation |
•
|
| Power levels (no. without booster level, downdraft extractor) |
3
|
| Booster level (downdraft extractor) |
•
|
| Displays | |
| Residual heat indicator for each cooking zone |
•
|
Efficiency and sustainability
Efficiency and sustainabilityEfficiency information applies only to the downdraft extractor. |
|
| ECO package |
•
 ECO motorPowerful and quiet: The DC motor saves up to 70% energy compared with conventional fans. |
| Cleaning convenience | |
| Easy to clean ceramic glass |
•
|
| CleanCover |
•
 Miele CleanCoverProtection and easy cleaning: Sealed, smooth interior prevents contact with electrical components and the motor. |
| Filter system (downdraft extractor) | |
| Number of dishwasher safe stainless steel grease filters |
1
 Stainless steel grease filters (10-layer)Convenient cleaning: The high-quality metal grease filters are dishwasher-proof and extremely durable. |
| Air throughput with max. duct diameter in extraction mode | |
| Air throughput in Level 1 (m³/h) according to EN 61591 |
185
|
| Air throughput in Level 2 (m³/h) according to EN 61591 |
370
|
| Air throughput in Level 3 (m³/h) according to EN 61591 |
535
|
| Air throughput in Booster level (m³/h) according to EN 61591 |
600
|
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 |
45
|
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 |
60
|
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 |
68
|
| Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 |
71
|
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 |
31
|
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 |
45
|
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 |
54
|
| Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 |
56
|
| Air throughput in recirculation mode | |
| Air throughput in Level 1 (m³/h) according to EN 61591 |
100
|
| Air throughput in Level 2 (m³/h) according to EN 61591 |
275
|
| Air throughput in Level 3 (m³/h) according to EN 61591 |
450
|
| Air throughput in Booster level (m³/h) according to EN 61591 |
500
|
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 |
42
|
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 |
60
|
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 |
70
|
| Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 |
73
|
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 |
27
|
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 |
45
|
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 |
55
|
| Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 |
58
|
| Safety (hob) | |
| Safety switch-off |
•
|
| System lock |
•
|
| Fault monitoring |
•
|
| Integrated cooling fan |
•
|
| Overheating protection |
•
|
| Residual heat indicator |
•
|
| Technical data set | |
| Dimensions in mm (width) |
885
|
| Dimensions in mm (height) |
257
|
| Dimensions in mm (depth) |
520
|
| Canopy width in mm |
125
|
| Canopy height in mm |
258
|
| Canopy depth in mm |
520
|
| Casing height incl. connection box in mm |
236
|
| Cut-out dimensions in mm (width) |
869
|
| Cut-out dimensions in mm (depth) |
500
|
| Weight in kg |
27
|
| Total rated load in kW |
7.4
|
| Voltage in V (per appliance) |
230
|
| Fuse in A (per appliance) |
16
|
| Installation notes (downdraft extractor) | |
| Extraction connection at side and rear |
•
|
| Width of the exhaust duct in mm |
222
|
| Depth of the exhaust duct in mm |
89
|
| Standard accessories | |
| Number of mains cables with plug |
Yes
|
| Number of spacer bars CSZL 1500 |
2
|
